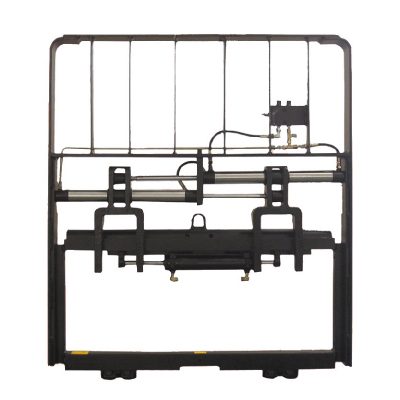

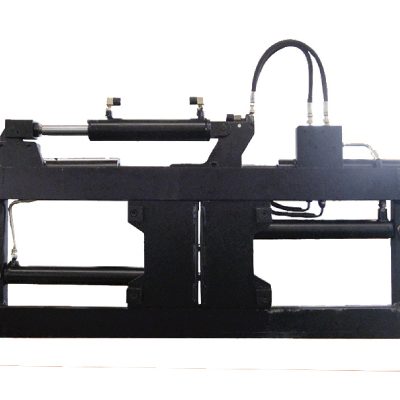

Vurkhyser bevestigingsvurkposisioneerder met syverskuiwing

Fork positioner adjusts the distance between forks through the hydraulic drive, reduces the labor intensity and improves efficiency, suitable for different specification tray handling occasion.

Kapasiteit @ Load Center (Kg @ mm)	katalogus	Monteringsklas	Lateral Range (mm)	Carriage Width (A)(mm)	gewig (Kg)	Effective Thickness (ET)mm)	Opening Range (Mm)	Vertical Centre of Gravity (CGV) (mm)	Horisontale swaartepunt (CGH) (mm)
2500@500	SLC-A002FP	2	± 100	1040	115	75	45-960	255	35
2500@500	SLC-A003FP	2	± 100	1100	122	75	45-1020	255	35
4500@500	SLC-B002FP	3	± 100	1100	140	84	50-1000	270	40
4500@500	SLC-B003FP	3	± 100	1150	148	84	50-1050	270	40
4500@500	SLC-B004FP	3	± 100	1200	155	84	50-1100	270	40
4500@500	SLC-B005FP	3	± 100	1380	175	84	50-1280	270	40
4500@500	SLC-B006FP	3	± 100	1430	186	84	50-1330	270	40
6800@600	SLC-C005FP	4	±150	1535	350	98	50-1420	382	55
6800@600	SLC-C006FP	4	±150	1710	382	98	50-1690	382	55
6800@600	SLC-C007FP	4	±150	1845	410	98	50-1720	382	55

Note:1)Please get the actual comprehensive carrying capacity of forklift/attachment from the forklift factory

2) Requires a forklift to increase the additional 2 sets of oil-way.

Vinnige besonderhede

---

Plek van herkoms: Fujian, China (vasteland)
Handelsnaam: HUAMAI
Model Number:SLC-A002FP
Product name: fork positioner
Load capacity: 2500 kg
Monteringsklas: 2
Carriage Width: 1100 mm
Opening Range: 80-1100 mm
Side shift distance: ±100 mm
Effective Thickness: 75 mm

---



Sit skuif by vurkhyser by, Klas 3 vurkposisioneerder
